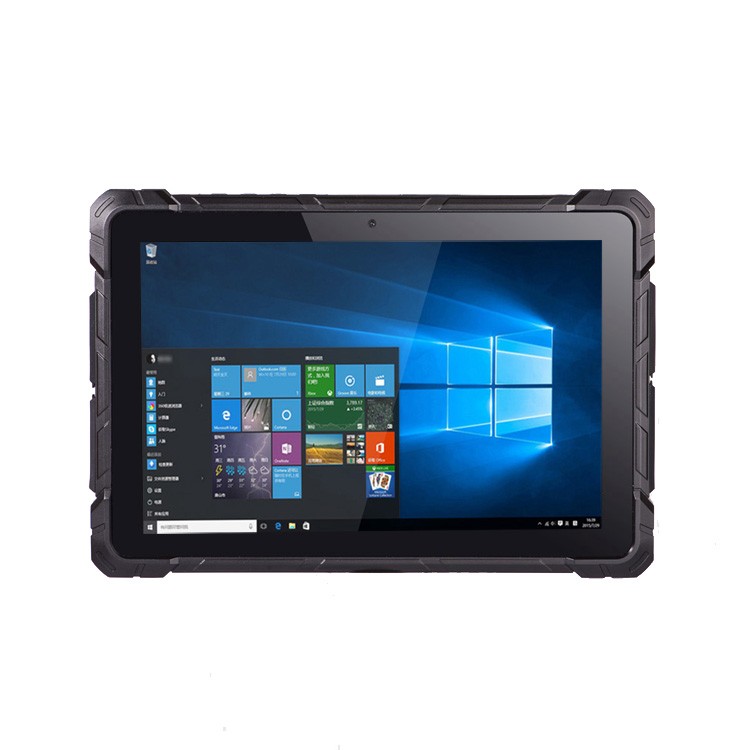

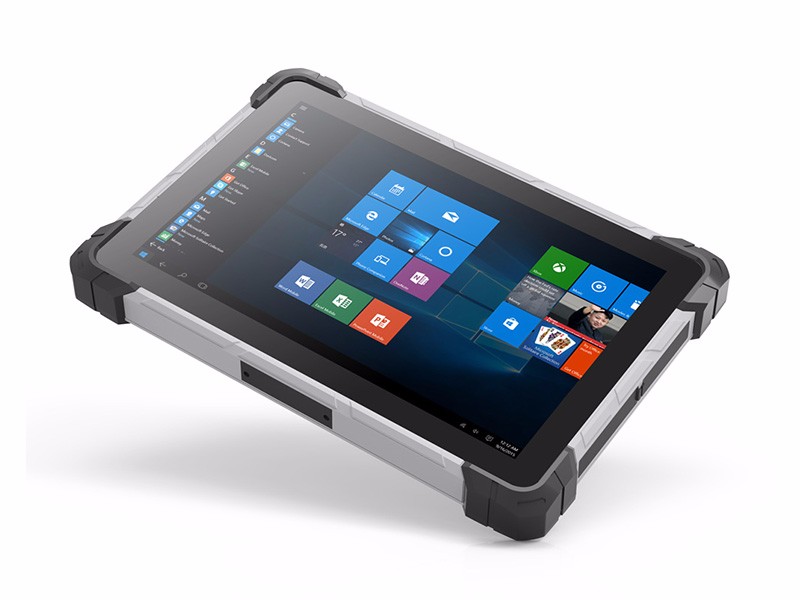

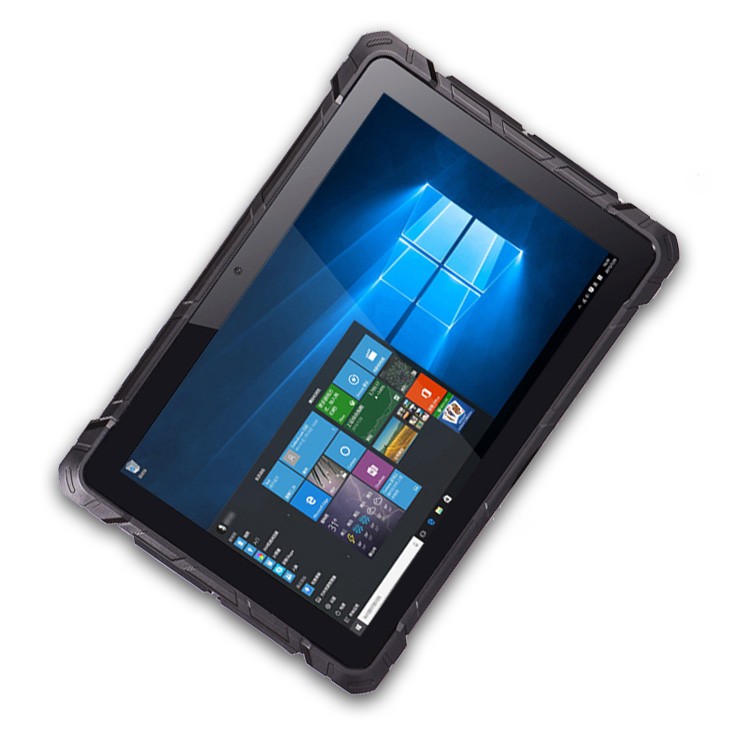

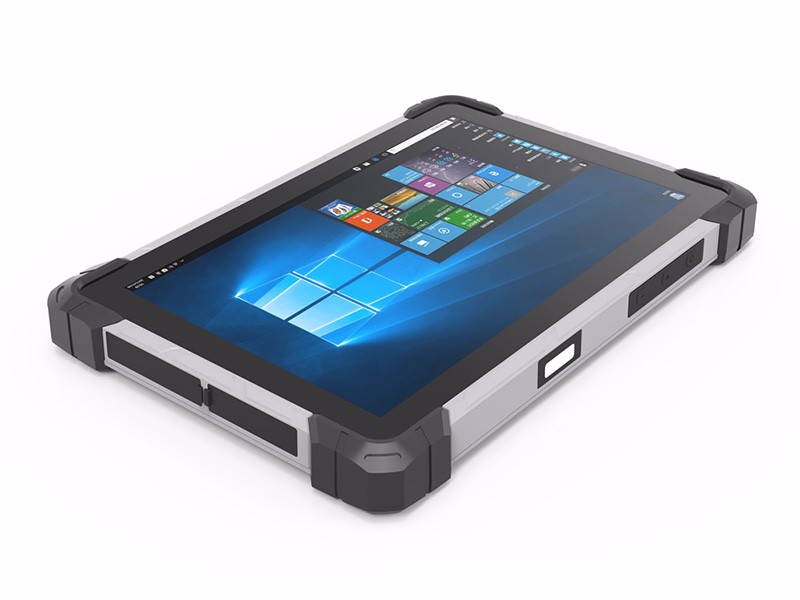

10.1'' Windows Rugged Tablet PC
- Size:270mm*186mm*26.5mm
- Model:F7
- Brand :Higole/ODM
F7 three-proofing tablet pc is sturdy&durable. It can be operated under extremely cold and hot environment. It is used for special operation, outdoor activities, military industry, police service, special equipment, ect.
Features
● 10.1” Dragontrail Glass Touchscreen;
● Intel Quad Core Z8350 CPU;
● Fanless Cooling System;
● Built-in Wi-Fi and Bluetooth;
● Optional Barcode Scanner;
● MIL-STD-810G Shock and Drop Resistant;
● IP67 Waterproof Protection;
| Technical Specifications | |||
| System | Other | 1x 9-pin Pogo Pin | |
| Processor | Intel Cherry trail T3(Quad-core )Z8350 | Expansion | |
| CPU | 1.44~1.92GHz | Multimedia | |
| Performance | Integrated | 8Ω/1W Speakers | |
| Video / | Intel HD Graphics | Speakers | |
| Graphics Card | Camera | Front: 2MP, Rear: 5MP | |
| Storage | Nand Flash | Microphone | Built-in |
| Storage | 32GB (Standard)or 64GB | Operating Temperature | |
| Support | (Optional) | Operating | -20oC to 60oC (-4oF to 140oF) |
| Memory | LPDDR3 | Temperature | |
| Memory (RAM) | 2GB, 4GB | Storage | -30oC to 70oC (-22oF to 158oF) |
| Display | Temperature | ||
| Screen Size | 10.1" | Humidity Range | 95% non-condensing |
| Screen | 1200 x 1920 IPS | Cooling System / Thermal Solution | |
| Resolution | Thermal | Passive - Fanless | |
| Display Ratio | 16:10 | Solution | |
| Brightness | 280 Nits | Dimensions / Weight | |
| Touch Screen | Weight (kg) | 1.0 | |
| Usage | G+G Multi-Touch Screen | Dimensions | 280 x 185 x 26.5mm (11.02 x 7.36 x 1.05in) |
| Capability | Enclosure | ||
| I/O Ports | Bezel | IP65 Protected | |
| USB 2.0 | 2x USB 2.0 Port, 1x USB 3.0 | IP Rating | IP65 |
| Serial | 1x RS232 | Peripherals & Devices | |
| Ethernet | 1x RJ45 | Wireless | Built-in Wi-Fi 802.11h a/b/g/n, and Bluetooth 4.0 |
| Other Ports | 1x Mini-HDMI Port, Micro SD Slot | Communication | |
| DC Jack | 1x DC 5V/3A adapter | GPS | optional |
| Audio In/out | standard 4 channel | Barcode | Optional 1D/2D Bar Code Reader |
| Operating System | Scanner | ||
| Operating | Windows 10 Home / Pro | Other Devices | Optional Fingerprint Reader |
| System | Accessories | Optional Docking Station with Battery | |
| Battery | Certification | ||
| Battery | 3V (12,000 mAh) | Certification | Conform with CE |
| Battery | 6 to 8 hrs | Warranty | |
| Operating Time | Warranty | 1 Year | |
| Power | |||
| Power Adapter | AC 100V~240V 50Hz/60Hz output DC 5V/3A | ||
| Expansion Slots | |||
| Inputs / Outputs |

| Technical Drawings |
